Program EnRoute using Gateway API

Gateway API provides a mechanism to program the Ingress. We show how EnRoute can be programmed using the Gateway API

Program EnRoute using Gateway API

Introduction

EnRoute is an Ingress API Gateway that is built using Envoy proxy. EnRoute has an extremely simple configuration model to help connect and secuire microservices at Ingress.

The Gateway API is an upcoming standard that is a replacement for Ingress. Like Ingress, it is an attempt to describe networking for traffic entering the Kubernetes cluster.

EnRoute Ingress API Gateway is now compliant with the Gateway API standard v0.6.0. In a Kubernetes cluster, EnRoute can now listen for Gateway API artifacts.

In this article, we discuss how Gateway API can be used to program EnRoute Ingress Controller API Gateway.

We start with a simple example to introduce Gateway API capabilities. Subsequent articles in this series, with include more details depending on how our customers adopt and use it.

Gateway API Example

Prerequisites

This example needs a Kubernete cluster 1.23 or up
Gateway API does not need a service mesh. We use a simple non-mesh cluster to demonstrate it.
EnRoute version v0.13.0-b1 or later that has support for Gateway API

EnRoute helm charts

EnRoute can be easily configured using helm charts. To demonstrate gateway-api capabilities, a special chart called gateway-api is created. The following helm charts are available

Chart	Description
`enroute`	Use this chart to configure and install EnRoute Ingress API Gateway
`demo-services`	Use this chart to install workloads used to demo EnRoute (eg: httpbin, grpcbin)
`service-globalconfig`	Use this chart to configure EnRoute global configuration (eg: Global Rate-Limit Engine Config, Configuration for Mesh Integration, Filters for all traffic - eg: Health Checker, Lua, etc.)
`service-host-route`	Use this chart to provide L7 connectivity and policy for a service using a host-and-route (`GatewayHost`) or just a route (`ServiceRoute`)
`gateway-api`	Use this chart to configure EnRoute using Gateway API

Add enroute helm repo

add the helm chart -



helm repo add saaras https://charts.getenroute.io

check repositories -



helm search repo



name                            chart version   app version     description
saaras/demo-services              0.1.0           0.1.0           Chart for Workloads used in EnRoute demo - http...
saaras/enroute                    0.8.0           v0.12.0         EnRoute API Gateway
saaras/gateway-api                0.6.0           v0.13.0-b1      Configure EnRoute using Gateway API
saaras/service-globalconfig       0.2.0           v0.11.0         Global Config and Global Filters for EnRoute
saaras/service-host-route         0.2.0           v0.11.0         Host (GatewayHost), Route (ServiceRoute) config
saaras/service-policy             0.5.0           v0.12.0         Demo Service L7 Policy using EnRoute API Gateway

‍

Install enroute



helm install enroute-gw-api saaras/enroute \
  --set serviceaccount.create=true \
  --create-namespace \
  --namespace enroute



NAME: enroute-gw-api
LAST DEPLOYED: Wed Jan 18 23:57:18 2023
NAMESPACE: enroute
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
  ______       _____             _
 |  ____|     |  __ \           | |
 | |__   _ __ | |__) |___  _   _| |_ ___
 |  __| | '_ \|  _  // _ \| | | | __/ _ \
 | |____| | | | | \ | (_) | |_| | ||  __/
 |______|_| |_|_|  \_\___/ \__,_|\__\___|

𝙴𝚗𝚁𝚘𝚞𝚝𝚎 Ingress API Gateway Community Edition Installed!
-------------------------------------------------------
Request a free evaluation license for enterprise version
by sending an email to contact@saaras.io

Slack Channel         - https://slack.saaras.io
Getting Started Guide - https://docs.getenroute.io/docs/prologue/introduction/
EnRoute Docs          - https://docs.getenroute.io/
EnRoute Features      - https://getenroute.io/features/



kubectl get all -n enroute



name                                ready   status    restarts   age
pod/enroute-5b4d45ff6c-mzv4b   3/3     running   0          16m

name                   type           cluster-ip    external-ip    port(s)                      age
service/enroute   loadbalancer   10.43.91.42   212.2.242.227   80:30808/tcp,443:31920/tcp   16m

name                           ready   up-to-date   available   age
deployment.apps/enroute   1/1     1            1           16m

name                                      desired   current   ready   age
replicaset.apps/enroute-5b4d45ff6c   1         1         1       16m

Install demo services



helm status istiod -n istiokubectl create namespace echo
kubectl create namespace httpbin
kubectl create namespace grpc
kubectl create namespace avote
helm install demo-services saaras/demo-services-system



kubectl get svc --all-namespaces
namespace     name           type           cluster-ip     external-ip     port(s)                      age
default       kubernetes     clusterip      10.43.0.1                443/tcp                      2d21h
kube-system   kube-dns       clusterip      10.43.0.10               53/udp,53/tcp,9153/tcp       2d21h
enroute       enroute        loadbalancer   10.43.91.42    212.2.242.227   80:30808/tcp,443:31920/tcp   20d
echo          echo           clusterip      10.43.137.85             9001/tcp                     21s
httpbin       httpbin        clusterip      10.43.104.4              9000/tcp                     21s
grpc          grpcbin        clusterip      10.43.56.47              9002/tcp                     21s

We will use Gateway API to expose the service httpbin externally. Next we create a self-signed certificate which we can use to serve traffic over https.

Create TLS secret for use in Gateway API

Create a self-signed certificate



openssl req  -nodes -new -x509  -keyout server.key -out server.cert

create kubernetes secret using self-signed certificate



kubectl create secret tls tlscert -n httpbin --key="server.key" --cert="server.cert"

The tlscert created in the step above is used in the gateway api example helm chart

Expose httpbin service using Gateway API



helm install gateway-api-example saaras/gateway-api

Edit EnRoute service to direct traffic to Gateway API Listener



kubectl edit -n enroute service enroute

We will cover the configuration using Gateway API below, but the listener we defined in the Gateway uses port 8444. Traffic from the LoadBalancer EnRoute service, should be directed to this port. Set targetPort to 8444 to direct encrypted traffic from the external Load Balancer to this Gateway API defined listener.



apiVersion: v1
kind: Service
metadata:
...
  name: enroute
  namespace: enroute
spec:
  clusterIP: 10.43.50.156
  ports:
  ...
  - name: https
    nodePort: 31326
    port: 443
    protocol: TCP
    targetPort: 8444
...
    app.kubernetes.io/name: enroute
  type: LoadBalancer
status:
  loadBalancer:
    ingress:
    - hostname: 7c51d516-1e1d-462b-a116-f22f191bf387.lb.managedk8s.com
      ip: 212.2.242.227

Send test traffic



curl -s -k https://hello-gateway.saaraslabs.com/get
{
  "args": {},
  "headers": {
    "Host": "hello-gateway.saaraslabs.com",
    "User-Agent": "curl/7.68.0",
    "X-Envoy-Expected-Rq-Timeout-Ms": "15000",
    "X-Envoy-Internal": "true"
  },
  "origin": "192.168.1.4",
  "url": "https://hello-gateway.saaraslabs.com/get"
}

‍

Understanding Gateway Artifacts

The helm chart creates the following artifacts

A GatewayClass object - common configuration related to multiple Gateways, which is defined per-cluster
A Gateway that defines Listener that is the entry point for traffic and L7 routing
HTTPRoute that defines L7 routing rules
HTTPRoute.Spec.backendRef that defines the services to which the traffic is destined.

GatewayClass

A GatewayClass object defines state that can be used by several Gateways



apiVersion: gateway.networking.k8s.io/v1beta1
kind: GatewayClass
metadata:
...
  labels:
    app.kubernetes.io/managed-by: Helm
  name: enroute
...
spec:
  controllerName: saaras.io/enroute
  description: The gateway class for enroute
status:
  conditions:
  - lastTransitionTime: "2023-01-18T00:25:17Z"
    message: Valid GatewayClass
    observedGeneration: 1
    reason: Valid
    status: "True"
    type: Accepted



kubectl get gatewayclasses.gateway.networking.k8s.io --all-namespaces



NAME      CONTROLLER          ACCEPTED   AGE
enroute   saaras.io/enroute   True       40h

Gateway

A Gateway defines listeners to receive incoming traffic from the external Load Balancer.



apiVersion: gateway.networking.k8s.io/v1beta1
kind: Gateway
metadata:
...
  labels:
    app.kubernetes.io/managed-by: Helm
  name: enroute
  namespace: httpbin
...
spec:
  gatewayClassName: enroute
  listeners:
  - allowedRoutes:
      namespaces:
        from: All
    name: gw-ingress-http
    port: 8081
    protocol: HTTP
  - allowedRoutes:
      namespaces:
        from: All
    hostname: hello-gateway.saaraslabs.com
    name: gw-ingress-https
    port: 8444
    protocol: HTTPS
    tls:
      certificateRefs:
      - group: ""
        kind: Secret
        name: tlscert
      mode: Terminate
status:
  conditions:
  - lastTransitionTime: "1970-01-01T00:00:00Z"
    message: Waiting for controller
    reason: NotReconciled
    status: Unknown
    type: Accepted

HTTPRoute

A HTTPRoute can be used to provide L7 routing rules to reach a service defined in Kubernetes



apiVersion: gateway.networking.k8s.io/v1beta1
kind: HTTPRoute
metadata:
  annotations:
...
  labels:
    app.kubernetes.io/managed-by: Helm
  name: gatewayapi-httproute
  namespace: httpbin
...
spec:
  hostnames:
  - hello-gateway.saaraslabs.com
  parentRefs:
  - group: gateway.networking.k8s.io
    kind: Gateway
    name: enroute
  rules:
  - backendRefs:
    - group: ""
      kind: Service
      name: httpbin
      namespace: httpbin
      port: 9000
      weight: 1
    matches:
    - path:
        type: PathPrefix
        value: /status
  - backendRefs:
    - group: ""
      kind: Service
      name: httpbin
      namespace: httpbin
      port: 9000
      weight: 1
    matches:
    - path:
        type: PathPrefix
        value: /get

Conclusion

Teams using EnRoute can continue to work with a simpler configuration model on their projects. When teams are ready for additional complexity arising from Gateway API, they can transition easily. This is possible since EnRoute’s flexibility provides an ability to work with simpler API, and evaluate Gateway API without any operational overhead.

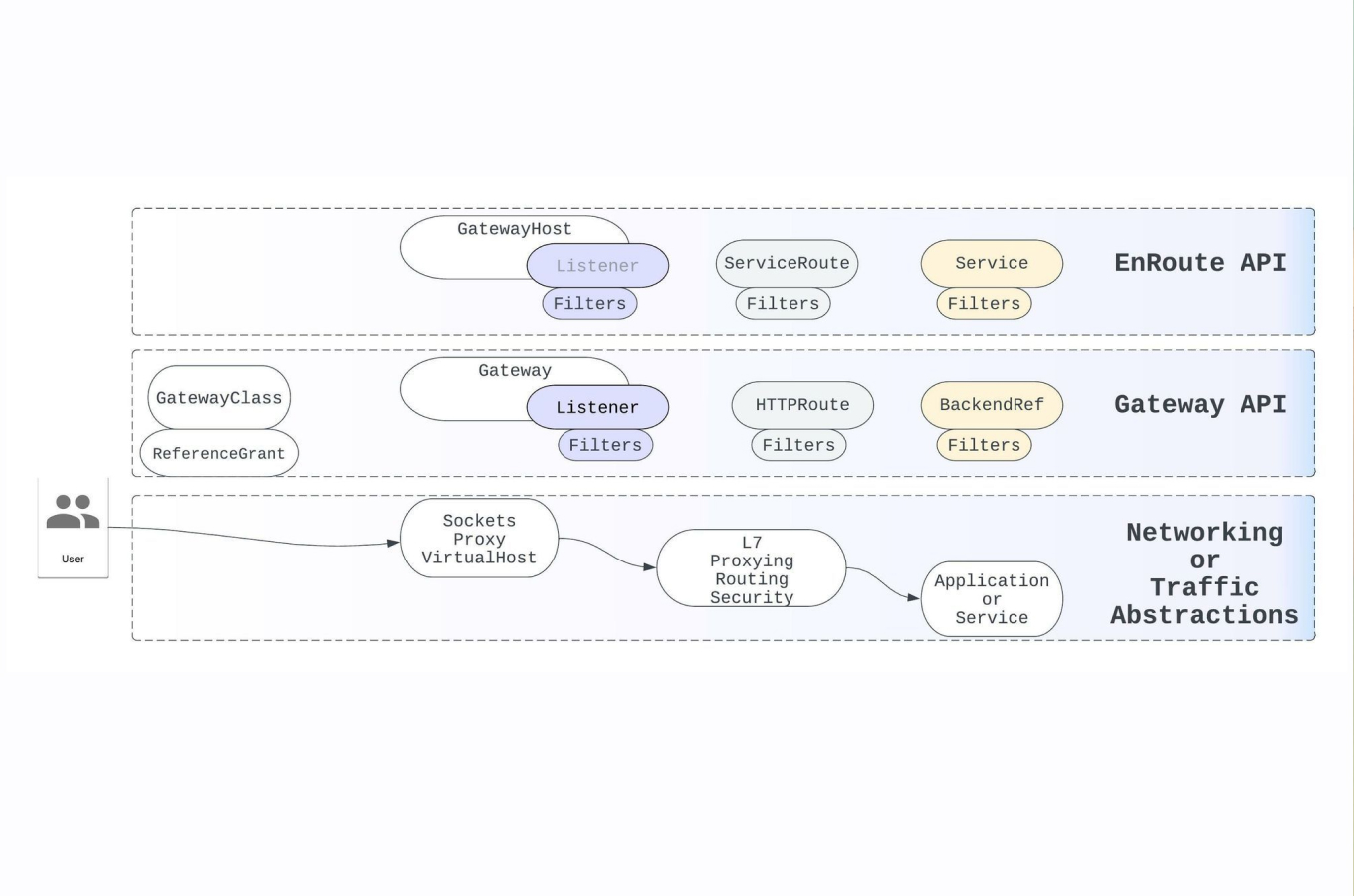

Gateway API abstractions are similar to EnRoute and resemble EnRoute model closely. EnRoute architecture was defined years back to provide an easy-to-use interface for Ingress, when Ingress was just released and it’s capabilities were limited.

EnRoute architecture allows for working with Gateway API and EnRoute API concurrently. Abstractions defined using any of the API can be mixed and matched to achieve the desired behavior and program the underlying Envoy proxy. This is possible since Gateway API configuration model resembles the EnRoute config model.

Gateway API assumes roles like platform operator, cluster operator, developer and uses ReferenceGrant, GatewayClass and Gateway to define cross-namespace access-control using them. We will discuss them in a subsequent article. While EnRoute supports these custom resources, they are not covered here for simplicity.

EnRoute is feature rich and is validated for stablity. All the development done on EnRoute, its features can be configured using EnRoute’s config model and will work with Gateway API. The current version of EnRoute supports the latest v0.6.0 of Gateway API as of writing this.
